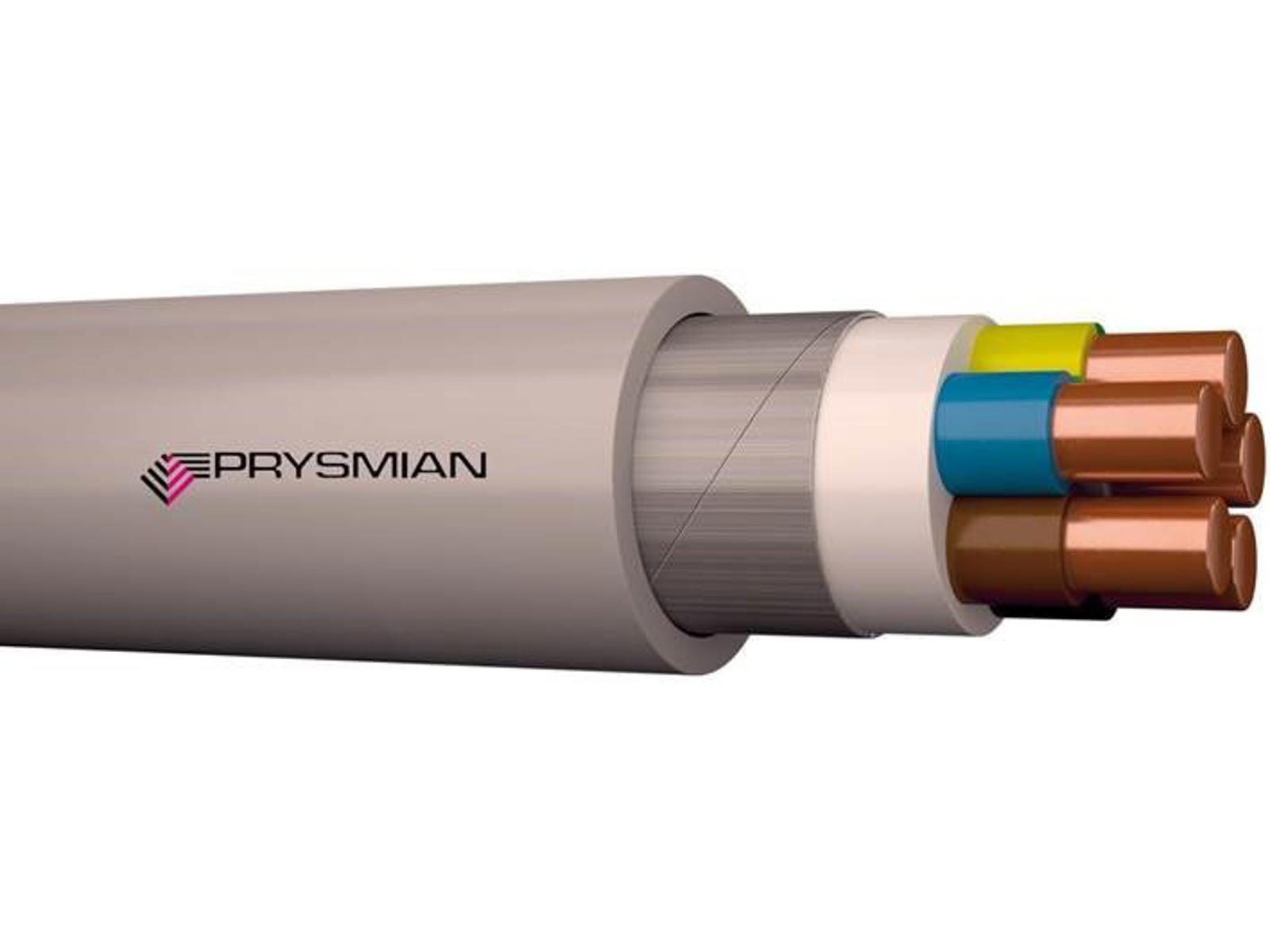

Installation cable, armoured, 100 metres
13 06 45 Armored installation cable Ø11mm.
13 06 46 Armored installation cable Ø12mm.
The cable may be used in agricultural installations in accordance with SB in fixed installation. The cable is mechanically protected with galvanized steel tape. Conductor: Copper wire class 1 Insulation: Halogen-free compound Galvanized steel strip 0.2mm2 with overlap. Outer jacket: Halogen-free compound, light grey, meter marked Conductor color 5 links: green/yellow, light blue, brown, black, grey. Bending radius Fixed: 10 x D ELECTRICAL DATA Rated voltage 300/500V Test voltage 2000V Max. Conductor Temperature +90°C Norm/approval DS 2393 Construction CENELEC HD 604- Halogen-free material Insulation IEC 60502-1 Approvals CE conformity Low voltage directive MATERIAL REQUIREMENTS / PROPERTIES Self-extinguishing IEC 60332-1 Halogen-free IEC 60754-1 and 754-2 Smokeless IEC 61034
